Locking bar

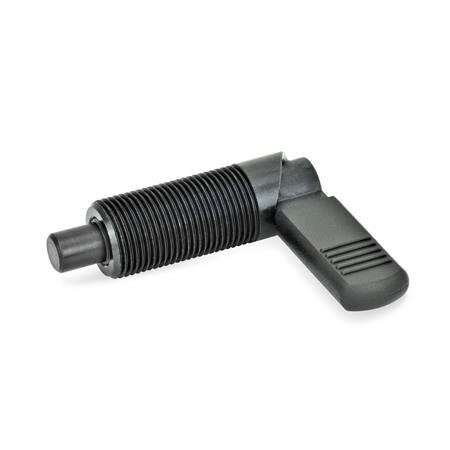

GN 612-10-M20X1,5-B without lock nut, with capST - Steel
Item-no.: 1208111Supplier number: 612-10-M20X1,5-Bcustoms tariff number: 73182900EAN: 4045525310179
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Cam action indexing plungers GN 612 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove is provided in either position to prevent the lock from rotating.
Attributes

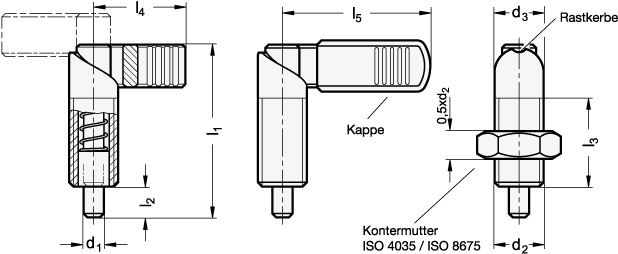

Bolt diameter d1
10
End
57
Federdruck Anfang
21 N
Fine thread d2
M 20 x 1,5
Form
B - with plastic cap, without lock nut
L1
69
L2
12
Material
ST - Steel
RoHS
Ja
Spring pressure in N ≈start
21
Weight
0.118 kg
d3
20
l3
36
l4
37
l5
52
