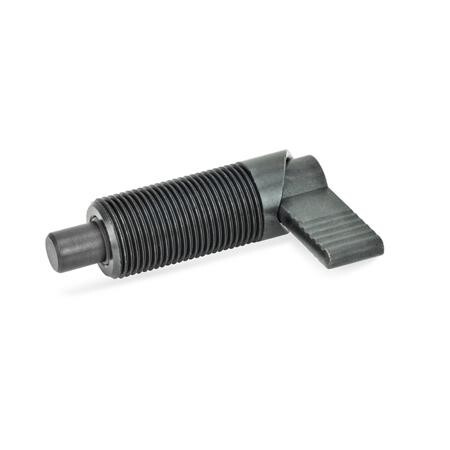

Locking bar
GN 612-8-M20X1,5-A without lock nut, without capST - Steel
Item-no.: 1208234Supplier number: 612-8-M20X1,5-Acustoms tariff number: 73182900EAN: 4045525311206
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Cam action indexing plungers GN 612 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove is provided in either position to prevent the lock from rotating.
Attributes
Bolt diameter d1
8
End
57
Federdruck Anfang
21 N
Fine thread d2
M 20 x 1,5
Form
A - without plastic cap, without lock nut
L1
69
L2
12
Material
ST - Steel
RoHS
Ja
Spring pressure in N ≈start
21
Weight
0.111 kg
d3
20
l3
36
l4
37
l5
52
