Ganter

Locking bolt with lock nut

GN 612-12-M20-AK
ST - Steel
Item-no.: 1208115Supplier number: 612-12-M20-AKEAN: 4045525591240
Quantity: ​​ 1 PiecePackable​
Item available in 158 variants:
Short-term Sourcing
Description
Cam action indexing plungers GN 612 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove is provided in either position to prevent the lock from rotating.
Attributes

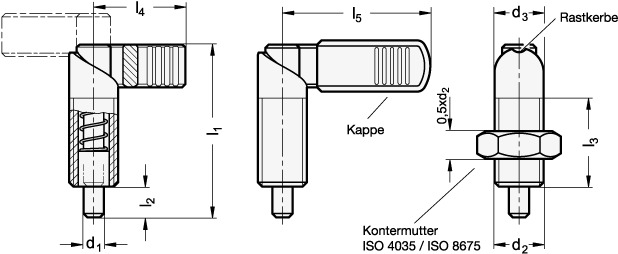

Bolt diameter d1
12
End
57
Federdruck Anfang
21 N
Form
AK - without plastic cap, with lock nut
L1
69
L2
12
Material
ST - Steel
RoHS
Ja
Screw thread d2
M 20
Weight
0.160 kg
d3
20
l3
36
l4
37
l5
52
